D-Sub Hoods

CA Style One Piece Hood with Hinge and Quick Lock with Long Thumbscrews





Click to Enlarge Part No. No. of Way Technical Data Click to View

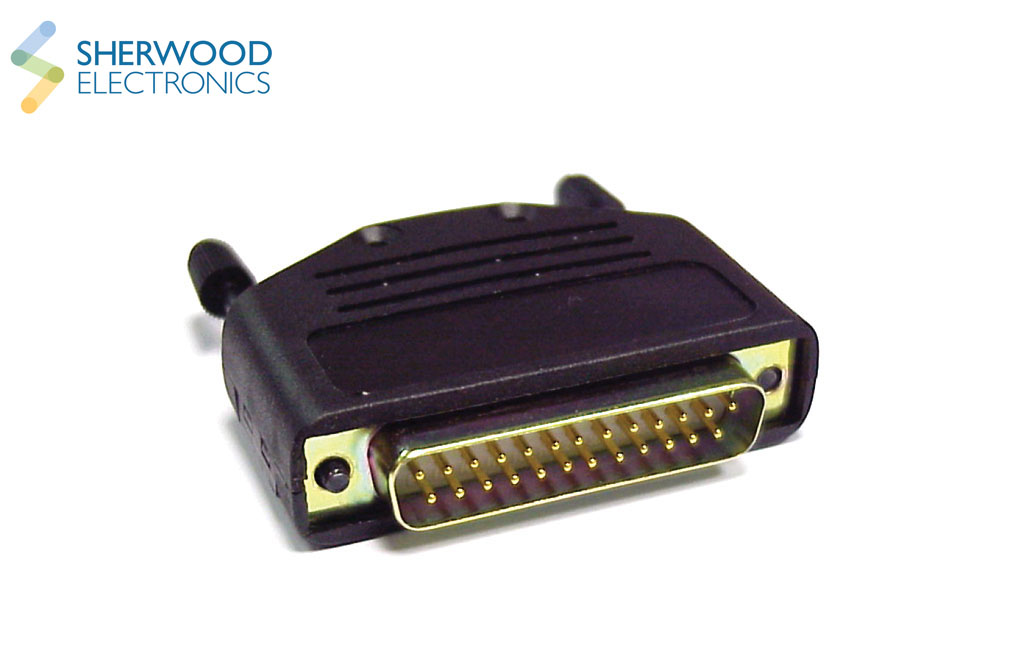

Click to Enlarge

R61-DPPK09-SH

R61-DPPK15-SH

R61-DPPK25-SH

R61-DPPK37-SH

9 Way

15 Way

25 Way

37 Way

Material:

Polyamid UL Recognised

Finish:

Black

Operating Temp:

-55oC to 110oC

Cable Entry:

Top

Thread:

UNC 4-40 (Standard)

Cable Diameter

Up to 11.5mm

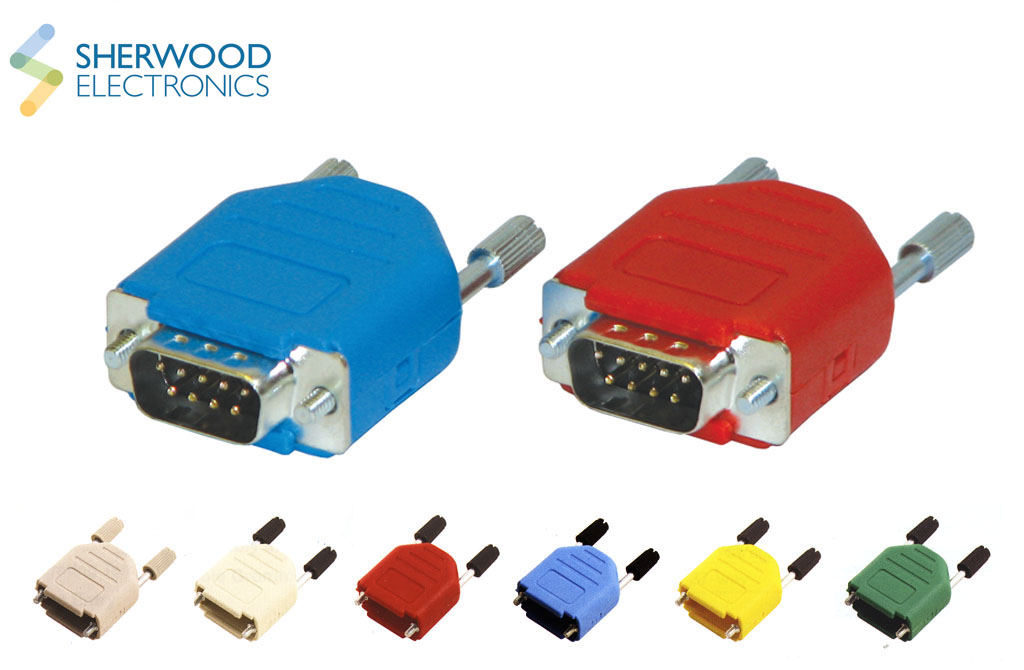

Click to Enlarge

R61-DPPK09 - #

R61-DPPK15 - #

R61-DPPK25 - #

R61-DPPK37 - #



Replace # with

required colour

9 Way

15 Way

25 Way

37 Way







Material:

Polyamid UL Recognised

Finish:

See data sheet for available colours

Operating Temp:

-55oC to 110oC

Cable Entry:

Top

Thread:

UNC 4-40 (Standard)

Cable Diameter

Up to 11.5mm
